Hammond Manufacturing Enclosures
Hammond Manufacturing manufactures a broad range of enclosure products for the electrical products industry, including metallic and non-metallic enclosures, racks, small cases, and electronic transformers.
Hammond Mfg. Enclosures

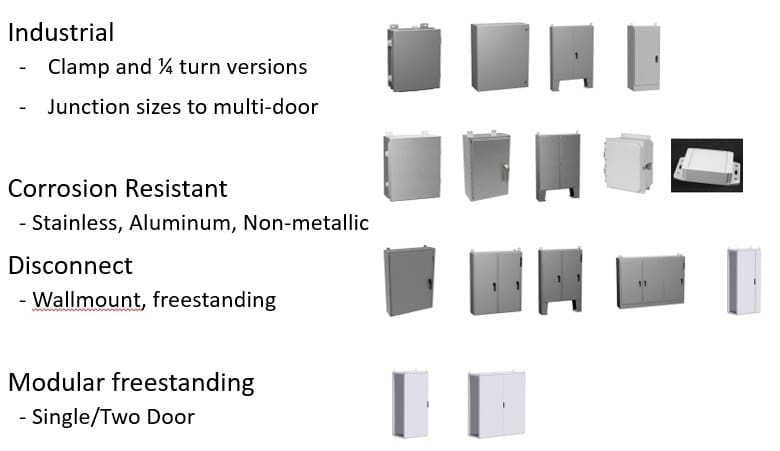

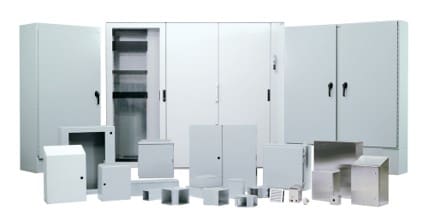

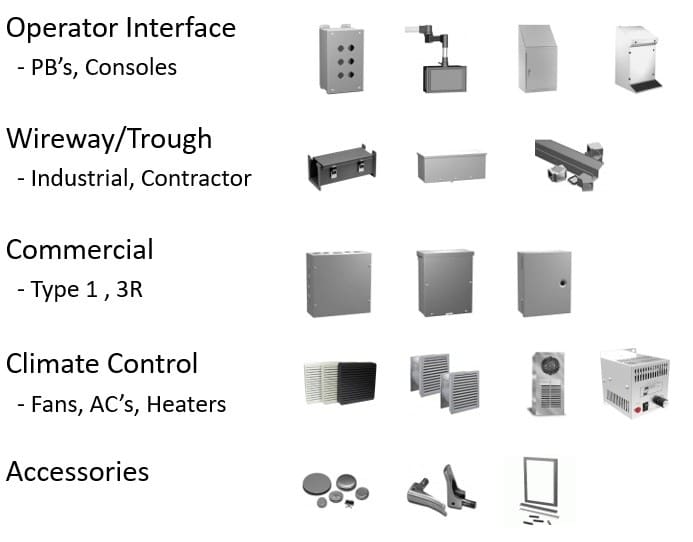

The Hammond enclosure offering includes UL/CSA/NEMA wallmount enclosures, freestanding enclosures, operator interface systems and modular enclosures designed to protect electrical equipment in numerous environments.
From small junction boxes to 4 door freestanding enclosures, Hammond has your size. Most designs are also available in both indoor (NEMA 12) and outdoor (NEMA 4) versions.
Product Highlights
- NEMA 12 and NEMA 4 mild steel
- Junction Boxes/JIC Enclosures – over 30 sizes – traditional clamped covers, screw covers.
- Wallmounts – over 110 sizes – traditional clamped covers, modern ¼ turn doors, double doors, sloped top enclosures.
- Floormount – over 20 sizes – double doors with handles, double doors clamped.
- Freestanding – over 30 sizes – 1 to 4 door versions, single and dual access.
Corrosion Resistant Enclosures
- NEMA 4X
- 304 Stainless Steel – over 300 SKU’s – junction boxes, wallmounts, floormount & freestanding
- 316L Stainless Steel – over 200 SKU’s – junction boxes, wallmounts and freestanding
- Non-metallic (Polycarbonate & FRP) – over 550 SKU’s – Junction Box/instrument cases, JIC boxes, wallmounts
- Aluminum – over 30 SKU’s – junction boxes, wallmounts
- Aluminum Die cast – over 70 SKU’s – Junction box/instrument cases
- Hygienic – over 30 SKU’s – junction boxes, push button and wallmounts
Download a Hammond MFG catalog here

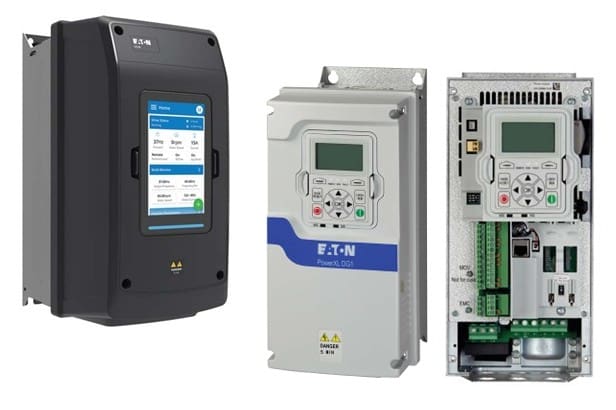

Eaton Variable Frequency Drives
Eaton VFD's
VFDs are used to adjust a motor’s speed to closely match output requirements in industrial, HVAC, water/wastewater treatment, machinery OEM and other applications. In addition a VFD offers the best energy efficient solution in variable speed applications.

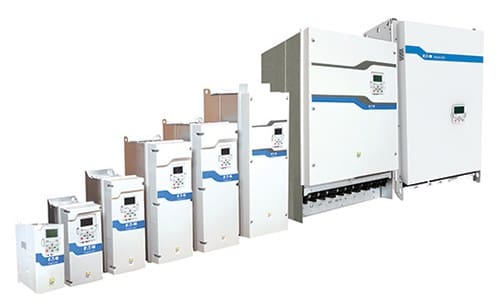

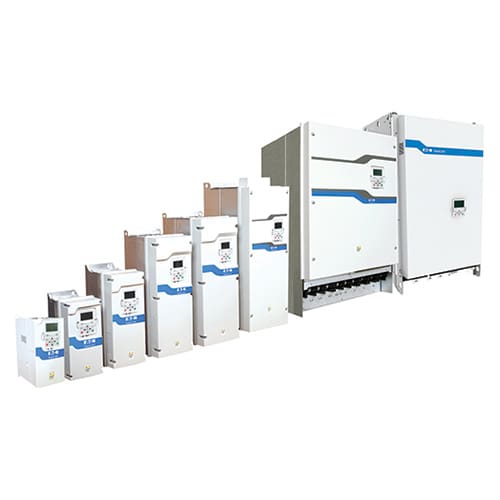

PowerXL series: DG1 general-purpose drives
PowerXL DG1 family
Features:
- Graphic LCD keypad display
- Onboard communications:
- EtherNet/IP, Modbus®/TCP
- RS-485: Modbus RTU, BACnet® MS/TP
- Onboard I/O:
- 8DI, 1DO
- 2AI, 2AO
- 2 FC relays and 1 FA relay
- Real-time clock with battery backup
- 5% DC link choke
- Standard applications: Multi-pump and fan control, Multi-PID, Multi-purpose
- Advanced configuration PC tool
Product Range
- 230 V to 125 hp, 312 A, 90 kW
- 480 V to 1000 hp, 630 A, 1180 kW
- 575 V to 800 hp, 597 A, 820 kW
- Open Type/IP00 or IP20 or Type 1/IP21 or Type 12/IP54 packaging

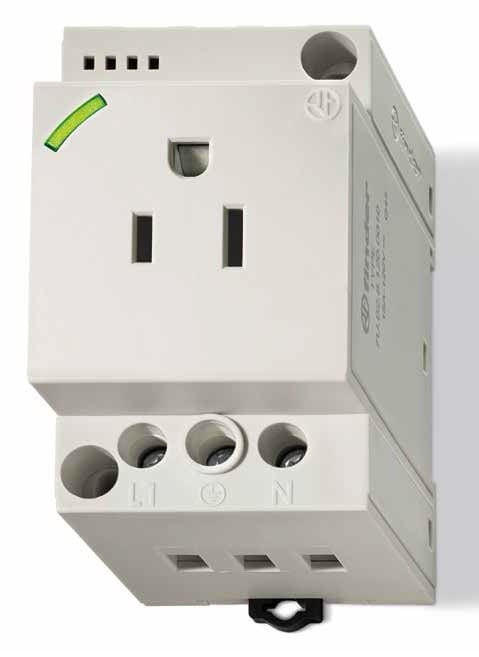

Finder Modular Power Outlets
Finder's NEW Modular power outlet for use within electrical enclosures
Features:
- Suitable for the North American grid, NEMA 5-15R, for Type A and Type B 15 A plugs
- Nominal voltage: 125 V AC
- Nominal current: up to 15 A
- Gray color RAL 7035
- Available with or without voltage presence LED in socket
- 45 mm wide
- Panel or rail 35 mm (EN 60715) mounting
Part Number Selection

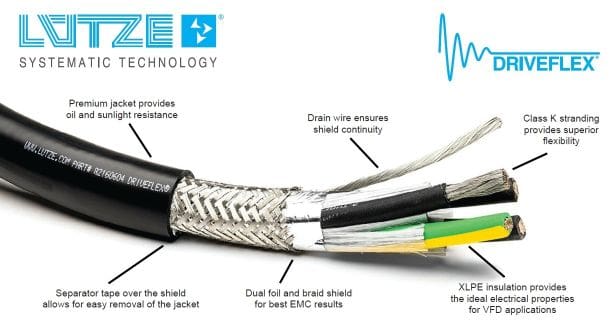

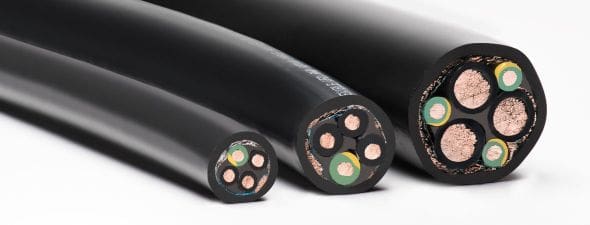

LUTZE DRIVEFLEX® Cable
Lutze DRIVEFLEX® Cables for VFD & Motor Applications
Product Features
- Designed to cope with the power distortions in VFD applications
- UL listed type “Flexible VFD Servo Cable, Flexible Motor Supply Cable” to comply with codes and standards regarding electrical wiring of VFDs
- Superior electrical values for VFD applications

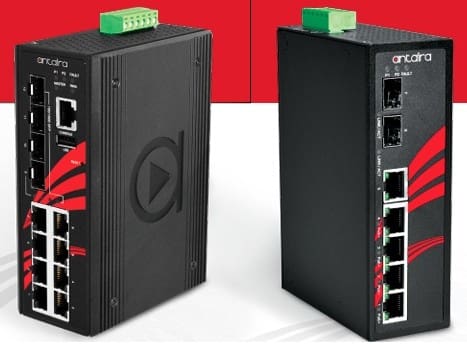

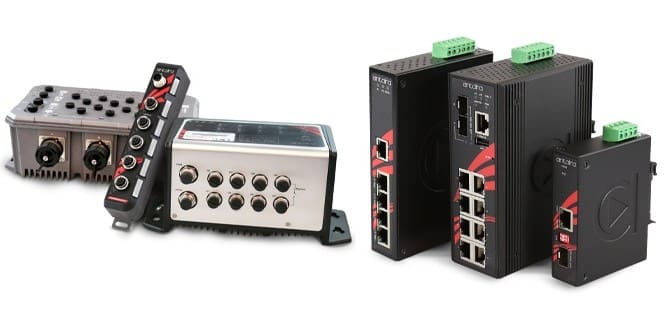

Antaira Ethernet Switches
Antaira Industrial Ethernet Switches

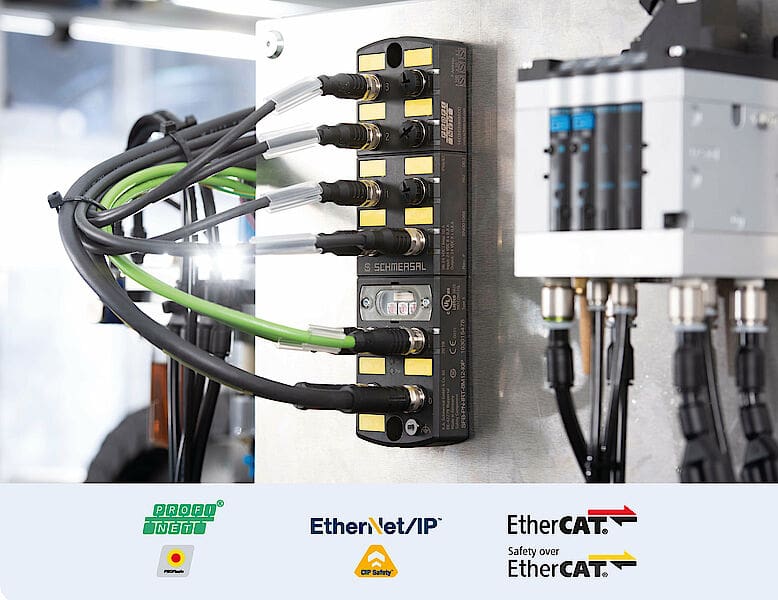

Schmersal Safety Fieldbox, with CIP Safety
The Safety Fieldbox from Schmersal
The Safety Fieldbox is suitable for simple Plug & Play installation of up to eight safety switchgear devices. The eight-pin M12 connector enables connection of all common types of safety switchgear, including sensors, interlocks, light grids and operating panels. This solution is also suitable for larger machinery and systems, as it allows for series connection of up to ten safety fieldboxes with 80 switchgear devices.
Product Features
- Safety fieldbox for EtherNet/IP with CIP-Safety
- 8 universal 8-pin M12 device ports
- Connection of electronic and electro-mechanical switchgear devices
- 4 control panels (with EMERGENCY STOP) connectable
- 1-channel and 2-channel control of the interlocking function
- Automatic resettable fuse integrated
- M12 power connector with a current carrying capacity of 10A
- Protection class IP66, IP67

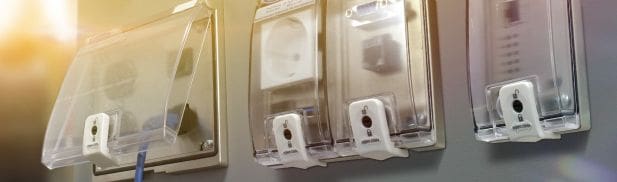

Mencom Low Profile Panel Interface Connectors
Mencom Low Profile Panel Interface Connectors

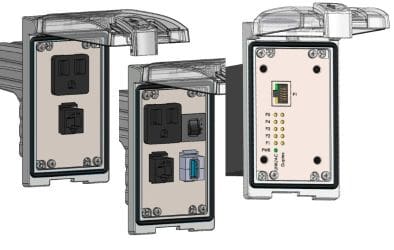

Mencom’s Low Profile PIC design protrudes from the side of the cabinet 75% less than the standard metal housings. The Low-Profile housings are UL listed and available in three sizes; one single cover (LP1), two single covers (LP2) and one double cover (LP3). The transparent polycarbonate cover allows users to see which components are within the enclosure. These enclosures provide an IP 65 rating, and feature a unique locking mechanism.

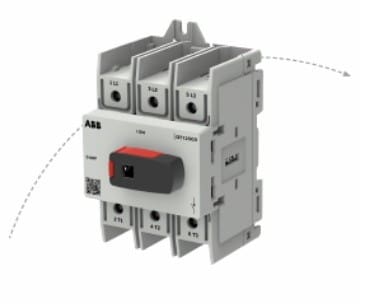

ABB OT Plus Switch
The all-in-one OT Plus Switch Disconnector range offers supreme protection and cutting-edge innovation for distribution and sub-distribution applications from 16A up to 160A with 3-, 4-, 6- and 8-pole options.
ABB OT Plus
Features:
- 16A up to 160A
- 3 frame sizes to fit your project, with overlapping current ratings
- 3-, 4-, 6-, and 8-pole options
- Adjustable fourth pole timings
- One universal auxiliary contact for any application
- Power loss reduction up to 67%
- OT switch is over 95% recyclable

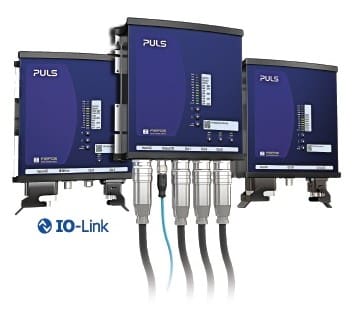

Puls Field Mounted Power Supplies
Puls FIEPOS Field Mounted Power Supplies
FEATURES:
- 360 W or 600 W
- 1-phase or 3-phase input
- LED Interface for immediate in field diagnosis
- IP65/67 protection against moisture & dust
- IO-Link Interface or DC-OK Contact
- Durable, Lightweight Aluminum Housing
- DIN Rail Mounting Option
- Multiple Connector Configurations Available
Carlo Gavazzi IO Link
Carlo IO Link

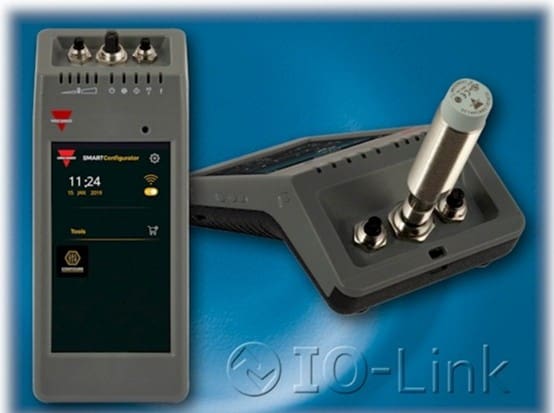

Features of the IO-Link Smart Configurator include:
- M12 and M8 connectors
- Suitable for 3 wire, 4 wire or 5 wire sensors
- 5.5” HD touch screen display 720 x 1280 pixels
- 16GB internal memory
- MicroSD card expandable memory
- WiFi enabled
- Battery powered
- LED battery indicators
- Lanyard and belt clip for portability
- Carlo Gavazzi Launcher Homepage
- “Configure” app
- Carlo Gavazzi App (downloadable for free)
Advantages of the IO-Link Smart Configurator include:
- Only device like this on the market
- Full mobility, battery operated with no wires attached
- Dedicated display for full convenience
- Friendly graphical user interface app
- Built in memory and expandable memory

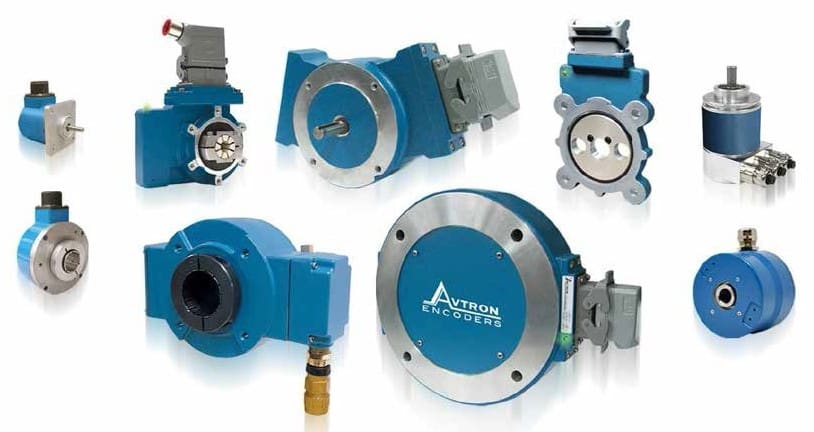

Avtron Encoders
Avtron Encoders

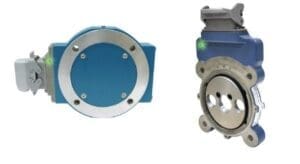

Incremental Encoders: The most commonly used type of encoder, it is a type of rotary encoder that generates a series of electrical pulses as the encoder shaft is rotated. The pulses measure the rotational position, speed and direction of the shaft.
Learn more about Incremental Encoders by clicking here

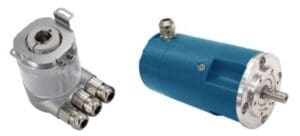

Absolute Encoders: Is a type of rotary encoder that provides absolute position information for the shaft or axis to which it is attached. Absolute encoders provide a unique code or digital word that represents the absolute position of the encoder at any given moment.
Learn more about Absolute Encoders by clicking here

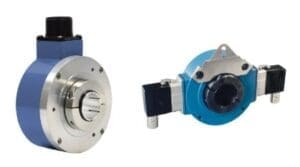

Optical Encoders: A device that converts motion or position into a digital signal by detecting changes in light. It typically consists of a rotating disc that has evenly spaced slots or markings on it, as the disc rotates, the light source shines through the slots or markings and the sensor detects the changes in light intensity which are then converted into electrical signals. These signals are then processed to determine the speed, direction, and position of the rotating disc.
Learn more about Optical Encoders by clicking here

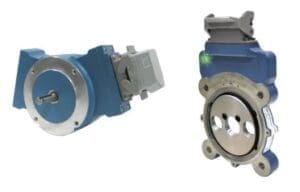

Magnetic encoders: A magnetic encoder refers to an encoder (linear or rotary) that uses magnetoresistive technology to detect the position, speed, or direction of a rotating shaft or linear motion.
Learn more about Magnetic Encoders by clicking here
Download a catalog
Download an encoder line card

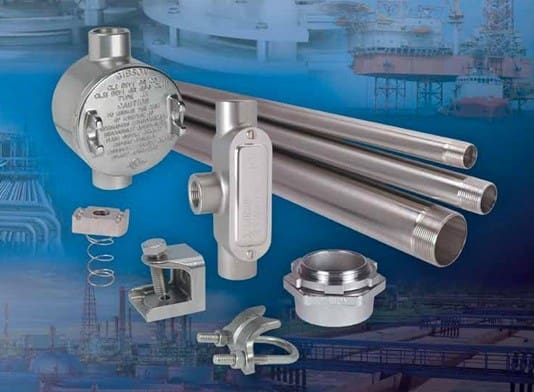

Gibson Stainless & Specialty

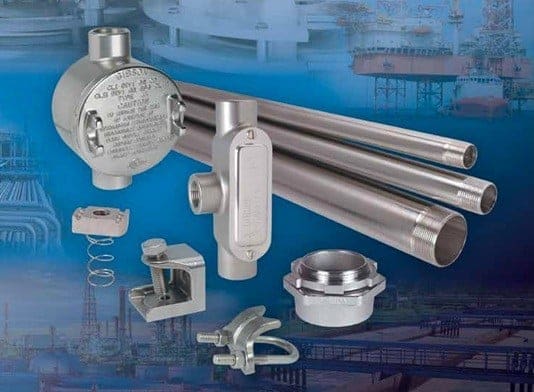

Gibson Stainless Steel Products
Why Stainless?
BUILT TO LAST:

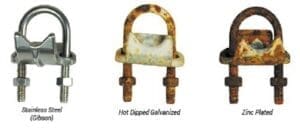

In areas where corrosion is a concern, stainless steel is often the choice. Stainless steel has a much greater resistance to rust and corrosion than standard carbon steels and greater resistance than coated steels such as hot dip galvanized or zinc plated. The life of stainless steel in a corrosive environment can be 10 to 20 times, or more, longer than carbon steels or iron.
Note: Results after 4-week salt spray test
EASY TO INSTALL:
Gibson Stainless offers threaded rigid conduit and fittings which eliminate extensive installation procedures. These conduit systems can be installed using ordinary hand tools and require very little maintenance or repair.
AESTHETICALLY PLEASING:
Aside from its corrosion resistance, stainless steel has an aesthetic appeal as well. Gibson Stainless products are provided in a bright, polished finish and do not require any maintenance such as touch up or painting.
Click here to download a catalog
Premium Quality & Reliable Service
Finder: Fans (7F Series) and Heaters (7H Series)
Finder Fans & Heaters

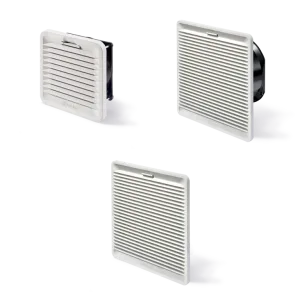

7F SERIES Filter Fans and Exhaust Filters
Functions & Features
The 7F Series of fans and filter fans for cabinets and electrical panel are products to ventilate and safeguard against high temperatures. The range includes the following features (according to Type):
- Operating voltage: 120 V AC, 230 V AC or 24 V DC (according to type)
- Quick replaceable filter
- Minimal depth within enclosure
- Air volume (17…412)CFM
- Time-saving installation and maintenance
- Very low acoustic noise
- Protection category: UL Type 12 / IP54
- Black color RAL 9004 available
- Dimensions from 4” up to 12”
7H SERIES Panel heaters
Functions & Features
The 7H Series of panel heaters prevent condensation and ensure the optimum temperature within an electrical panel
Features include (according to Type):
- Heater power 25 – 50 – 100 or 150 W
- Fan assisted heaters 250 W and 400 W
- Power supply 110…230 V AC/DC
- PTC self-regulating heating system
- Safe touch
- 35 mm rail (EN 60715) mount with clip
